Professional Supplier Solar 12V Mini Hot Water Circulation Pump

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Topsflo
[China]

Address
Changsha, Hunan, China (Mainland) Changsha Hunan
Phone
86-0731-82739266
Contact name
Richard Wang

Quick Information

  • Brand Name: Topsflo
  • Place of Origin: China
  • Model Number : TS5
  • :

Description

Quick Details
Brand Name:
TOPSFLO
Model Number:
TS5
Place of Origin:
Hunan, China
Application:
Food and Beverage Industry, Water Treatment Solutions, Solar water heaters/Mini Hot Water Circulation Pump
Horsepower:
dc power, solar pv
Power Source:
Electric, SOLAR POWER
Pressure:
10BAR, High Pressure
Structure:
Single-stage Pump
Cable Length:
.
Outlet Size:
.
Voltage:
12V
Power:
5w 10w 15w, Electric
Certification:
ROHS, ce, UL, Reach
Usage:
Water
Motor:
DC brushless motor
Start power:
less than 2 Watt
Life time:
20000hour
Pump Liquid:
water,hot water,liquid
More Application:
Hot Water Circulation, Solar Applications Liquid Transfer
Fuel:
Solar panel, Battery, DC power

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X11X7 cm
Single gross weight:
0.328 kg
Package Type:
Inner box in firm carton,protected by pallets;Stand export packing,or OEM packing.
Lead Time :
Quantity(Pieces)1 - 5051 - 500501 - 2000>2000
Est. Time(days)71525To be negotiated

Professional Supplier Solar 12V Mini Hot Water Circulation Pump

Remarks:
- We are high-end Brushless DC pumps manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us

Professional Supplier Solar 12V Mini Hot Water Circulation Pump

Professional Supplier Solar 12V Mini Hot Water Circulation PumpProfessional Supplier Solar 12V Mini Hot Water Circulation PumpProfessional Supplier Solar 12V Mini Hot Water Circulation Pump



 Professional Supplier Solar 12V Mini Hot Water Circulation Pump







Specification



MODELPV MODULE WATTS (W)MAX FLOW(L/M)MAX HEAD METERS(M)
TS5-A12-5PV58.41.6
TS5-A12-10PV10102.4
TS5-A12-15PV1512.63.2


 Get more Technical data, please click  here



Curve & Dimension



 Professional Supplier Solar 12V Mini Hot Water Circulation Pump





Professional Supplier Solar 12V Mini Hot Water Circulation Pump

Professional Supplier Solar 12V Mini Hot Water Circulation Pump

Professional Supplier Solar 12V Mini Hot Water Circulation Pump



* Solar Water Heating Systems        * Hot Water Circulation

* Radiant Floor Heating                      * Heat Transfer Applications

* 12V Operated Cooling Systems             * Food Liquid Transfer

* Hot Wort Transfer Pump for Home Brewing                   * Sous Vide

Application

Product Description

1. Voltage: 6V-24V DC (Rate:12V DC)
2. Soft start at very low in-rush current, good convenient working directly with PV panel
3. Advanced magnetic drive technology for static-impeller, without any leakage for ever
4. Max system pressure: 10Bar
5. Max working temperature: 110ºC (230ºF)

6. Min start-up power consumption less than 2 Watt
7. Low noise: 45dB(A) far from 1m distance
8. Heavy duty work, can sustain continual 24 hours' work
9. Low power consumption,Low or no maintenance



PV operated
For solar system loops, the TS5 pump can be powered directly from a PV panel. The sun comes up, heat builds in the solar hot water panel and at the same time electricity is made in the PV panel. The pump slowly starts with the smallest amount of current and pushes the heated water to the storage tank. It's all too simple and eliminates all controllers, thermostats and sensors.

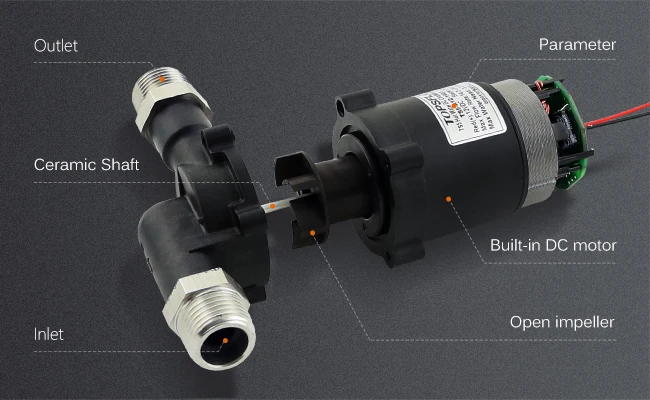

Product detail

Professional Supplier Solar 12V Mini Hot Water Circulation Pump











Packaging & Shipping

Professional Supplier Solar 12V Mini Hot Water Circulation Pump



1.The stock samples can be sent to you within 3-5 days by international express after received

2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)





 Professional Supplier Solar 12V Mini Hot Water Circulation Pump





Get more detail, please click here



Packaging & Delivery

  • Packing :Inner box in firm carton,protected by pallets;Stan
  • Delivery Lead Time : 25 day
  • Supply Ability : 100000
